Model-No.:ri-sonic® electronic stethoscope and eMurmur® software
ri-sonic®
electronic stethoscope

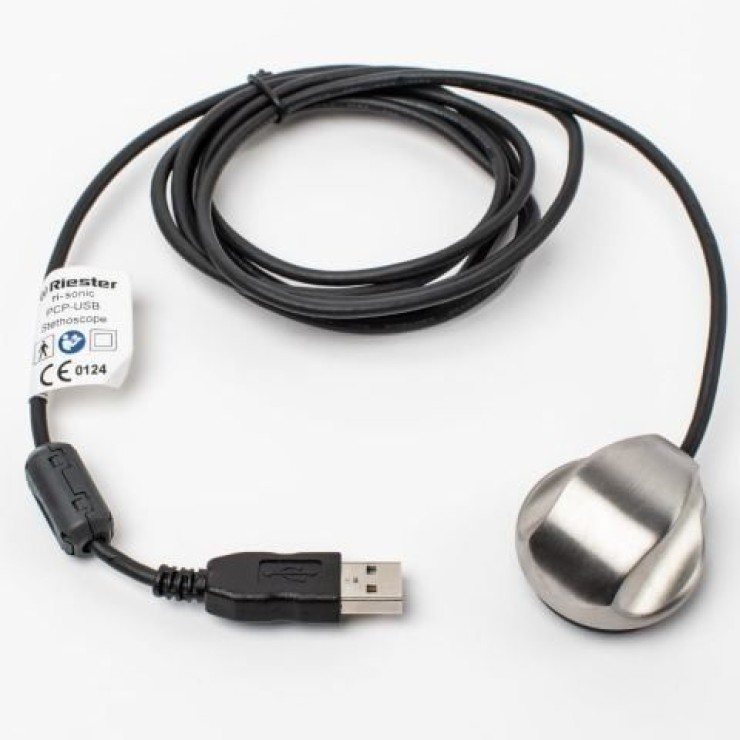

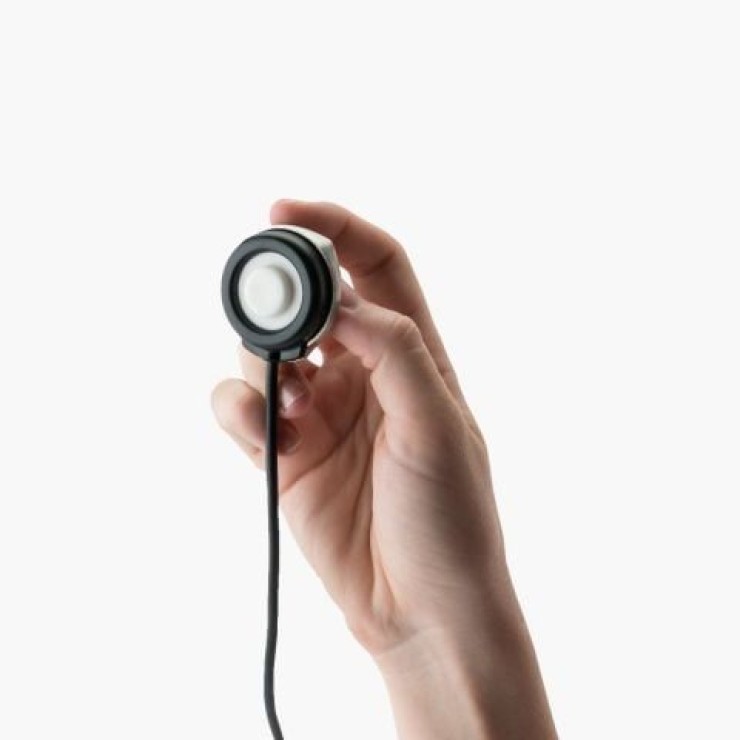

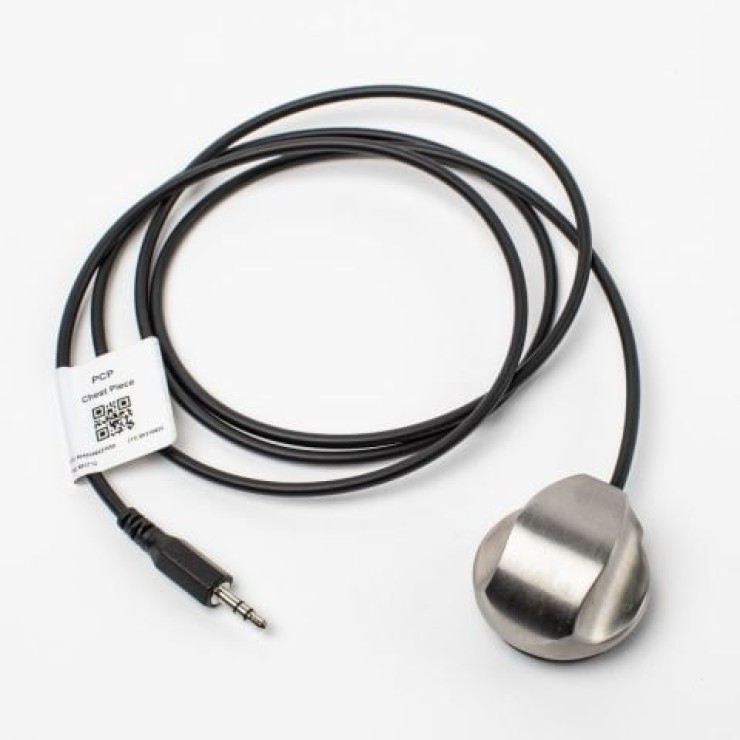

PCP-USB and PCP-1 electronic stethoscopes
are designed to provide high quality auscultatory sound via telemedicine,
computer or through mobile device platforms. This can be done in real time,
remotely or through sharing of recorded files.
All the quality
of a traditional stethoscope, but with state-of-the-art technology
lThe PCP-USB or PCP-1 stethoscope plugs directly into any mobile
platform, PC or tablet computer
lEasy to use electronic stethoscope, no buttons, or dials
lUses patented piezo technology for picking up body sounds with
minimal background artefacts
lNo requirements for a second doctor on transmit end. Patients can
use the stethoscope on themselves under the guidance of a clinician
lNo batteries needed
lErgonomic design
Mode of Operation
This product may be used in continuous operation.
Electrical Operation
Class II protection against electrical shock
Auscultation Bandwidth / Frequency range
20 – 2000 Hz
Classification
Type BF applied part
Weight
ri-sonic PCP-USB with cable: 180g
ri-sonic PCP-1 with cable: 145g
Operating Conditions
5°C to 40°C at a water vapor pressure up to 50mbar a relative humidity range of 30% to 75%.
Start up time
Instant. Please note, there is no minimum time required for the unit to warm up from minimum storage temperature or to cool down from maximum storage temperature before use.
Storage and transport conditions
-25°C bis 35°C,> 35° C to 70° C at a water vapor pressure up to 50mbar with a relative humidity range of 0% to 90%.
Air pressure
700hPa to 1060hPa
Maintenance / Accuracy check / Calibration
The ri-sonic PCP-USB / ri-sonic PCP-1 Chest Piece requires no preventive inspection, no preventive or routine maintenance, and it does not have to be calibrated.
Warranty
2 years from the date of purchase on all defects, which can verifiably be shown to be due to material or manufacturing faults. Please note, a warranty claim does not apply in the case of improper handling.
