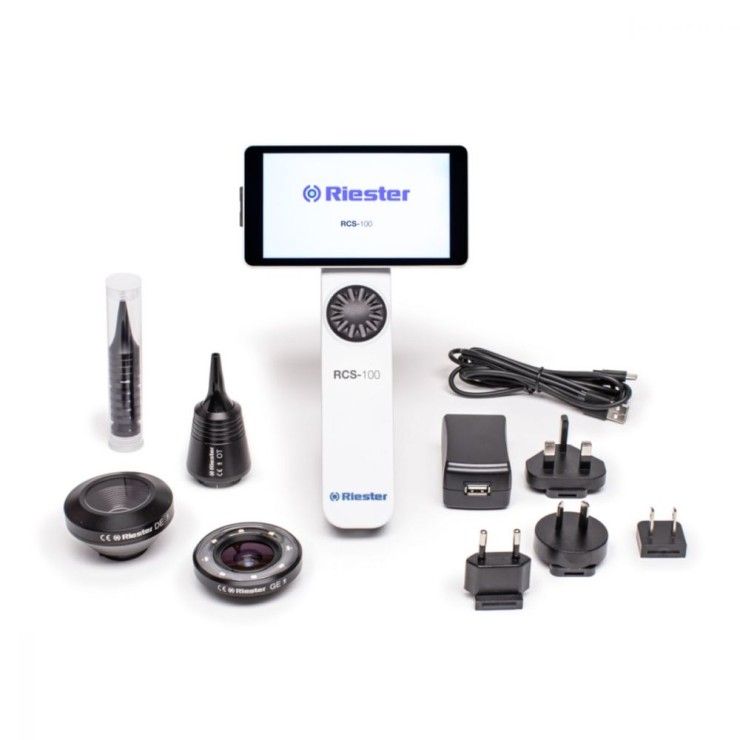

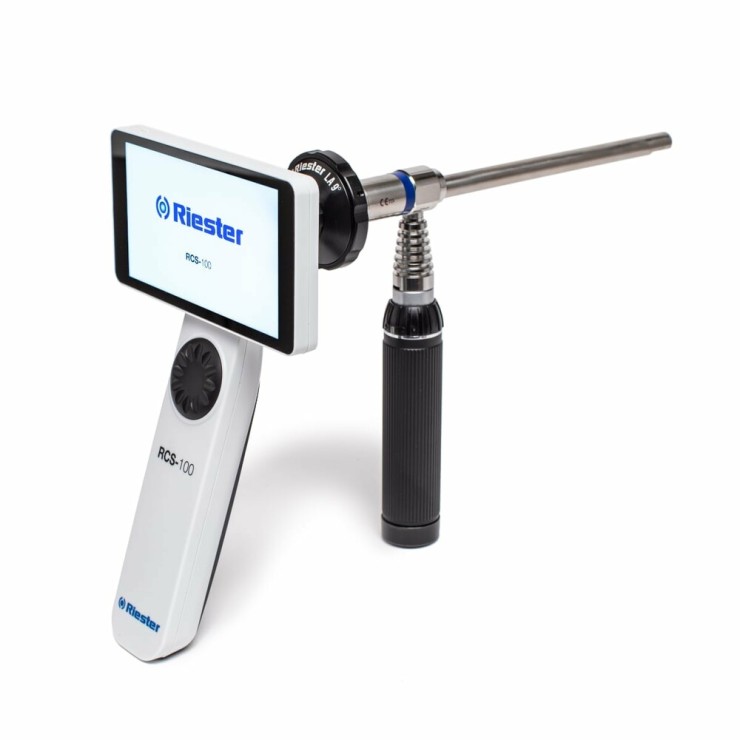

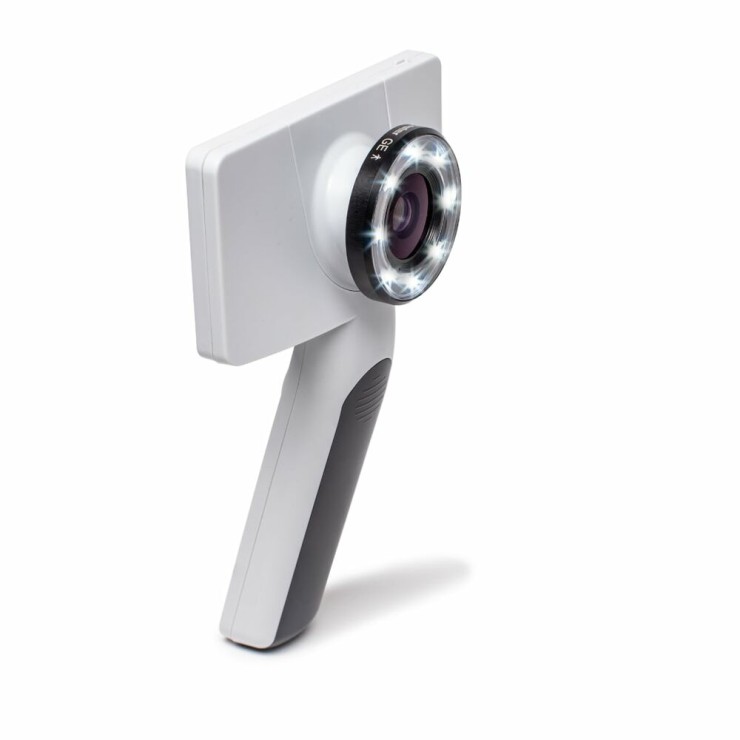

RCS-100 is a multi-functional, portable and
versatile medical camera system that can be used with a choice of lenses and
adapters to assess a patient's eyes, ears, nose, throat, skin and more.
RCS-100
advantages
RCS-100 has a touch screen which makes it
quick and easy for the user to capture images and videos. The camera provides

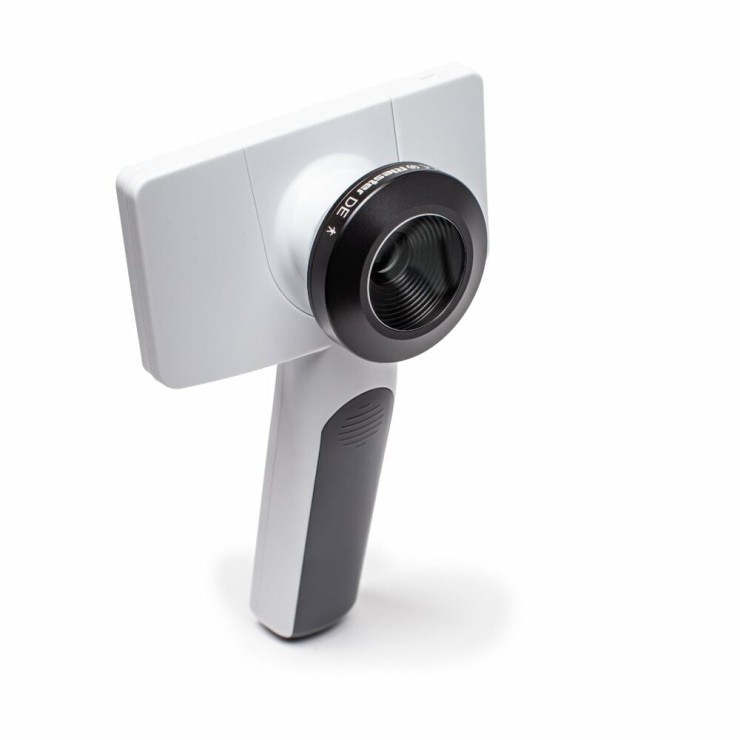

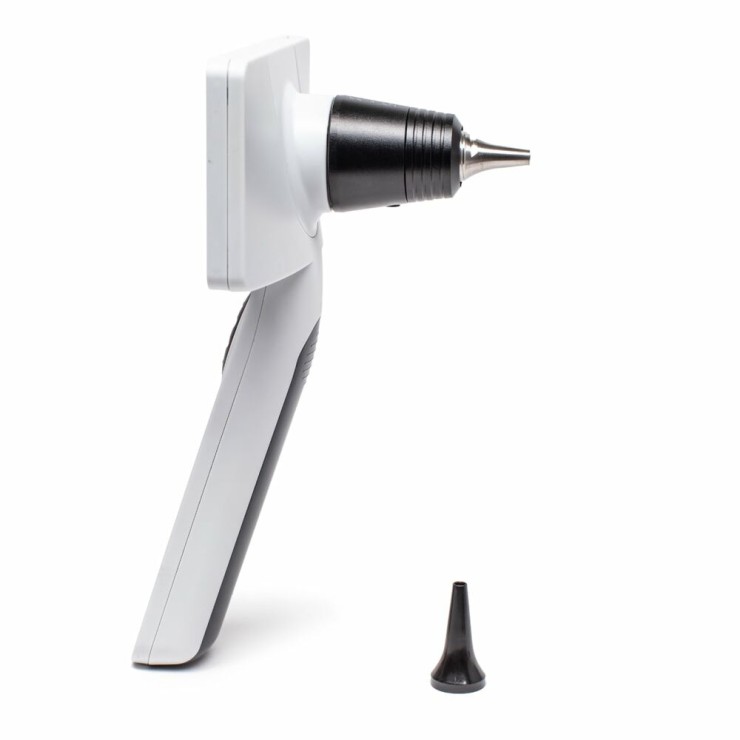

high-resolution, scalable images with 2x to 6x magnification of the otoscope
and 2x to 8x magnification of the dermatoscope as well as digital zoom
function. Single-handed operation adjusts the focus and light intensity using
the ergonomic rotary wheel, whilst also minimising the risk of
cross-contamination.
It provides the additional benefit of
capturing and sharing the digital photograph or video of the ear canal and
tympanic membrane, epidermis and dermis of skin, respectively. Across your
practice and across the world, remotely or asynchronously.
Features of the
RCS-100 medical camera system
l5“ full HD colour TFT-LCD display screen 1,280 x 720 pixels provides
high resolution, scalable images with 2x - 8x magnification and digital zoom
capabilities.
lTouch screen makes it quick and easy for the user to capture images
and videos.
lOne-handed operation with the ergonomic rotary wheel minimises the
risk of cross-contamination as well as the capability to adjust focus and light
intensity.
lLive picture display on a second screen, using UVC function, allows
the user to show another HCP or the patient what they can see and explain what
this means in real time.2
lShare images via the micro-USB 2.0 cable, or optional Wi-Fi
connection.3
lLanguages: English, German, French, Spanish, Italian, Russian,
Chinese and Arabic.
LCD screen
5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover
Focus
Automatic/manual
Image/Video format
Picture: JPEG / Video: MP4
Battery
3.6 V 2600 mAH 1S1P 18650-li-battery
Adaptor
Input: 100 ~ 240 V50 ~ 60 Hz, 0.3 A
Output: DC 5 V/2 A
CMOS sensor
8 MP (megapixels)
USB
OTG type C USB, UVC
RAM
2 GB LPDDR3
ROM
16 GB
Optional
Extended memory 16 GB Wifi SD Card
Start time
< 30 sec.
Wake up time
< 5 sec.
Stand by time approx.
7 days
Ambient temperature
+10° C to +40° C
Operating time
Video 3.5 hours
Charging time
3 hours
Relative humidity
15 % to 95 % rel. non condensing
Storage
0° C to + 45° C
Cleaning control unit and charging adaptor
Soft cloth with alcohol (70 % ethyl alcohol)
Cleaning optical lenses
Cleaning cloth or a lens cleaning tissue (e.g. THORLABS)
