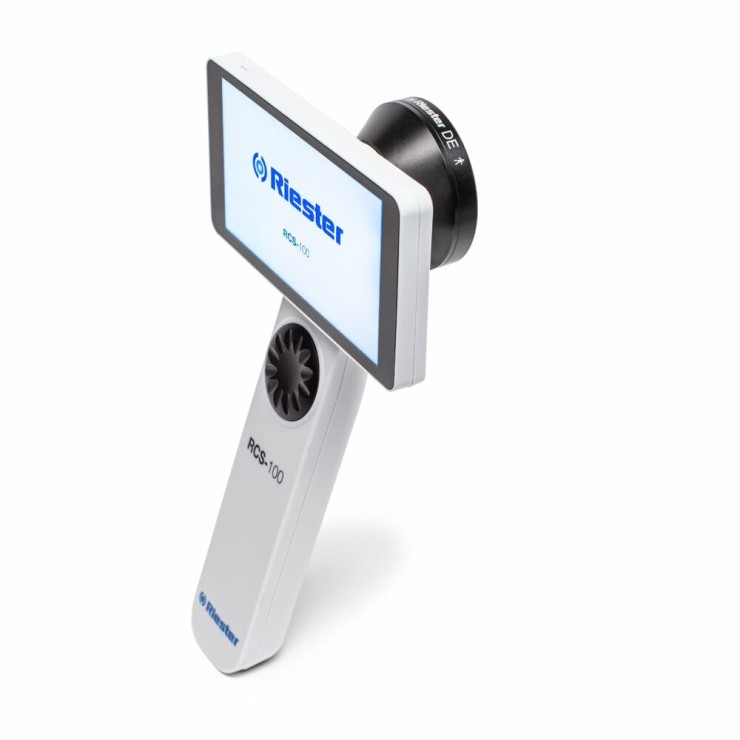

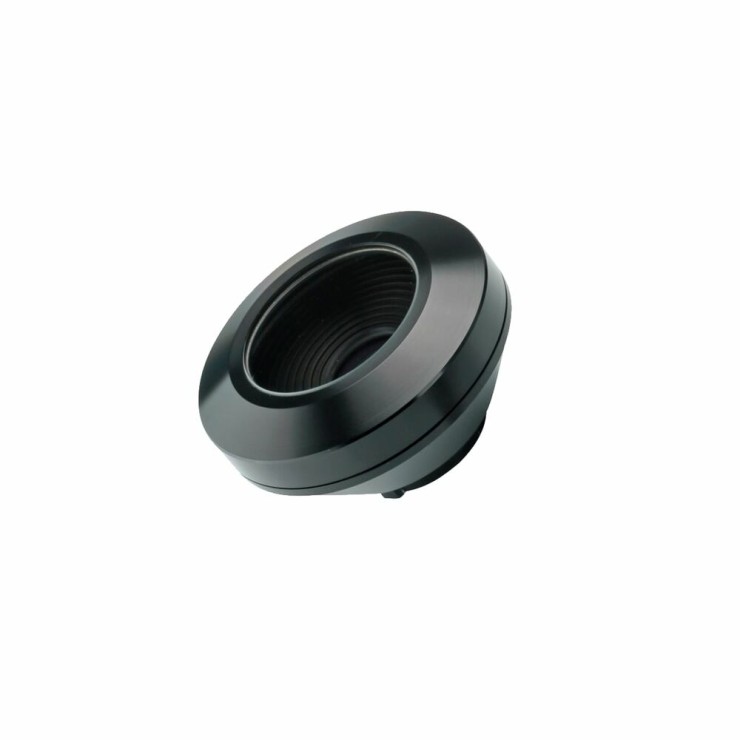

RCS-100 medical camera with dermatoscope
lens can substitute or replace the traditional dermatoscopy devices, providing
the additional benefit of capturing and sharing the digital photograph or video
of the epidermis and dermis of the skin.
LCD screen
5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover
Focus
Automatic/manual
Image/Video format
Picture: JPEG / Video: MP4
Battery
3.6 V 2600 mAH 1S1P 18650-li-battery
Adaptor
Input: 100 ~ 240 V50 ~ 60 Hz, 0.3 A
Output: DC 5 V/2 A
CMOS sensor
8 MP (megapixels)
USB
OTG type C USB, UVC
RAM
2 GB LPDDR3
ROM
16 GB
Optional
Extended memory 16 GB Wifi SD Card
Start time
< 30 sec.
Wake up time
< 5 sec.
Stand by time approx.
7 days
Ambient temperature
+ 10° C to + 40° C
Operating time
Video 3.5 hours
Charging time
3 hours
Relative humidity
15 % to 95 % rel. non condensing
Storage
0° C to + 45° C
Cleaning control unit and charging adaptor
Soft cloth with alcohol (70 % ethyl alcohol)
Cleaning optical lenses
Cleaning cloth or a lens cleaning tissue (e.g. THORLABS)
